Brake Control
YB10
YB20
YB30
YB40
YB20
제품소개

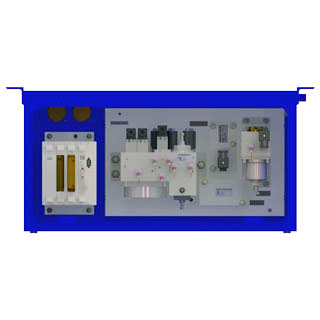

BCU YB20 시리즈
차량 제어 방식
대차 제어 방식
System Feature
Compact, Lightweight and Manifold Control
Service & Emergency Brake Control
Mechanically Load Controlled Emergency Brake
Security Brake Control
Remote Brake Release by Compulsory Magnet Valve
Fault Detection and Self Diagnosis System
Long Design Life and Lower Life Cycle Cost
Easy to maintenance
Operating Environment
- Wide range temperature -40°C ~ +60°C
- Vibration level to EN 61373
- Waterproof level to IP65 EN 60529
Option
- Various Train Communications : PWM, MVB, CAN, RS485, USB, Ethernet
- Electrically Load Controlled Emergency Brake
- Wheel Slide Protection(WSP) Control per Axle/Bogie
Application
Next Generation EMU 6Cars
Intercity Train eXpress-Cheongchun 64Cars
Daegu Line #2 Monorail 84Cars
Intercity Train eXpress-Saemaeul 138Cars
Busan Line #1 extension EMU 48Cars
Korail Line #1 EMU 90Cars
