Description

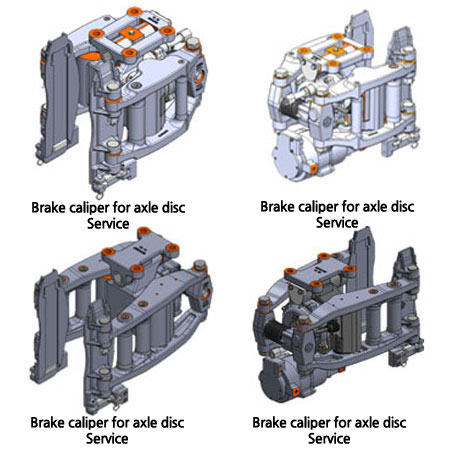

• Compact brake caliper for disc brake

System Feature

• New concept design combined cylinder into brake caliper
• Simple installation with bogie / 1 point install
• Small cylinder size / low air consumption
• Robust design for severe environment like to rain, snow, vibration
• Max. output force 70 kN, parking output force 50 kN
• Wide temperature range -40 ~ +60 ℃
• Vibration performance verified acc.to IEC61373
• Water and dust proof verified acc.to IEC60529
  (IP68 with breather plugged)
• Rust protection verified acc.to ISO 9227

Application

EMU, LRV, High Speed Train
