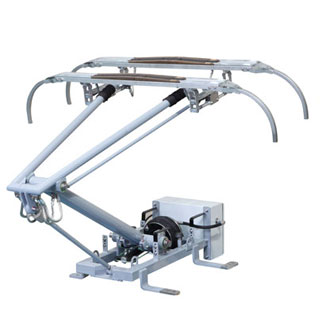

제품소개

동력차 지붕에 설치되며, 강체가선(지하구간) 및 심플 카테너리선(지상구간)에서 공기 상승, 자중 하강 방식을 이용해 원활히 집전하는 기능을 갖고 있다.주행 중의 공기 저항을 작게 할 수 있는 상부 구조물과 서스펜션 설계를 적용하여 고속전철 및 고속형 전기기관차 등에 사용할 수 있다.

System Feature

• Speed : Max. 165 km/h
• A rated voltage : AC 25,000V
• Operating method : Raised by air pressure and lowered by its own weight
• Operating air pressure : 5 ~ 8 bar
• Static contacting force : Standard 7kgf
• Material of the Current collector strip : Metallized Carbon
• Weight : Approx. 80kg
• Wide range temperature : -35°C ~ + 45°C

Application

• ONYANG 32Cars, Sin-bundang 72Cars, 48Cars, AUTS EMU(R&D) 6Cars

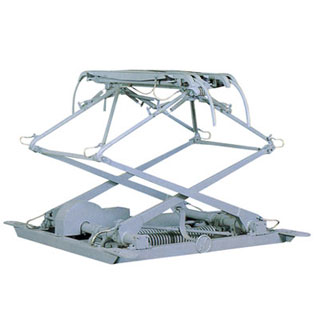

제품소개

동력차 지붕에 설치되며, 강체가선(지하구간) 및 심플 카테너리선(지상구간)에서 공기 상승, 스프링 하강 방식을 이용해 원활히 집전하는 기능을 갖고 있다.내한 및 내설에 대비하여 실린더 부에 있는 레버 및 링크 부에 커버를 설치하고, 실린더에는 고무 다이어프램 방식을 채용하고 있다.

System Feature

• Speed : Max 110km/h
• A rated voltage : DC 1,500V , AC 25,000V
• Operating method : Raised by air pressure and lowered by spring force
• Operating air pressure : 4 ~ 7 bar
• Static contacting force : Standard 6kgf
• Material of the Current collector strip : Metallized Carbon , Sintered copper alloy
• Weight : Approx. 190kg
• Wide range temperature : -25°C ~ + 45°C

Application

• EMU for Domestic market (100%)

System Feature

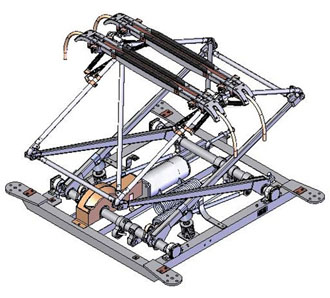

• Model : YT88 & YT90
• Speed : Max. 110kph
• Operation : Raised by air, Lowered by spring force
• Weight : Approx. 180kg
• Project : EMU for Domestic market (100%)

System Feature

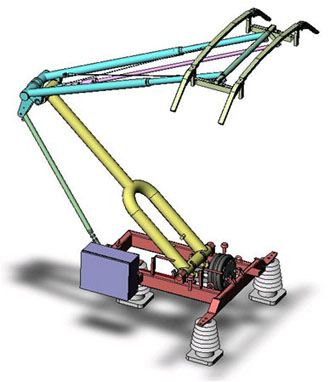

• Model : EL-YP200G(WBL85)
• Speed : Max. 200kph
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 120kg
• Project : Korail E-Loco 83Cars.

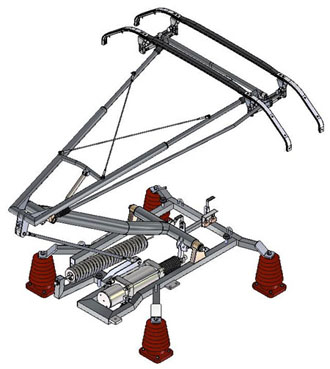

System Feature

• Model : EC-YP140G(SBE920)
• Speed : Max. 140kph
• Operation : Raised by air, Lowered by spring force
• Weight : Approx. 180kg
• Project : Turkey TCDD 96Cars.

System Feature

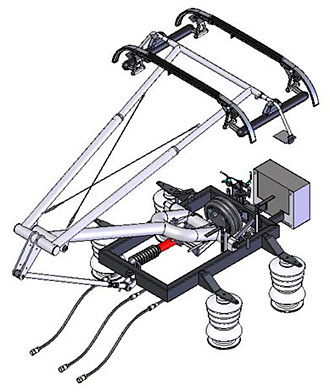

• Model :EL-YP300S
• Speed : Max. 300kph
• Operation : Raised by air, Lowered by its own weight
• Function : ADD, Up-lift stop device.
• Weight : Approx. 140kg
• Project : Alternative for KTX. (10 set delivered)

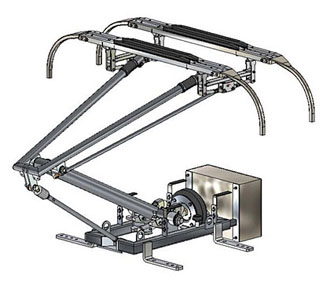

System Feature

• Model : EC-YP165G(SBL923)
• Speed : Max. 165kph
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 80kg
• Project : Onyang 32Cars, Sin-bundang 72Cars, 48Cars, AUTS EMU(R&D) 6Cars.

System Feature

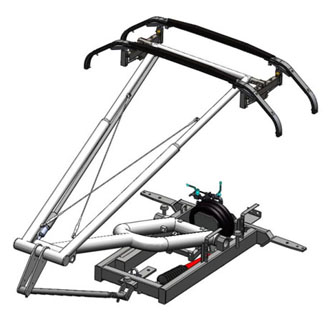

• Model : EL-YP200S(WBL85)
• Speed : Max. 200kph
• Function : ADD, OHP.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 120kg
• Project : Tilting EMU 6Cars, Kyungchun EMU 64Cars, Fright E-Loco 54Cars, 31Cars, Intercity 138Cars.
• Perfomance : EN50206-1, EN50367

System Feature

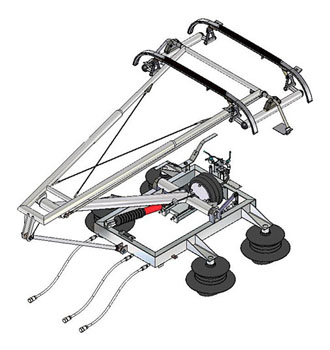

• Model : SSS400+
• Speed : Max. 350kph
• Function : ADD, Up-lift stop device.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 140kg
• Project : TBD
• Perfomance : EN50206-1, EN50367

System Feature

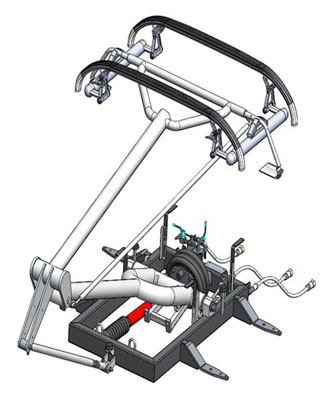

• Model : EL-YP400G
• Speed : Max. 400kph
• Function : ADD, Up-lift stop device, Semi active control.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 145kg
• Project : HEMU-430x.
• Perfomance : EN50206-1, EN50367

System Feature

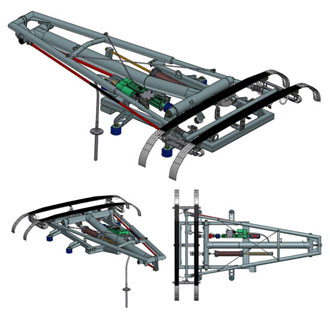

• Model : SBE 920
• Speed : Max. 70kph
• Function : Safety locking & Manual operation.
• Operation : DC 24V Motor drive
• Weight : Approx. 150kg
• Project : Tram.

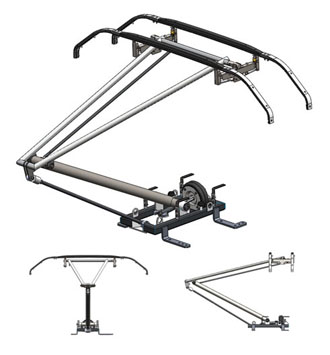

System Feature

• Model : EC-YP140G
• Speed : Max. 70kph
• Operation : DC 24V Motor drive
• Function : Safety locking & Manual operation.
• Max operation height : Min 2,930 mm
• Weight : Approx. 150kg
• Project : Tram.
