产品介绍

装于动力车辆顶上，利用于刚体架线(地下区)及悬链线（地上区)间空气上升、自重下降的方式来具有集电功能.在运行过程中适应减低空气阻力的上部构造物和悬浮，可用于高铁及高速电动机车.

System Feature

• Speed : Max. 165 km/h
• A rated voltage : AC 25,000V
• Operating method : Raised by air pressure and lowered by its own weight
• Operating air pressure : 5 ~ 8 bar
• Static contacting force : Standard 7kgf
• Material of the Current collector strip : Metallized Carbon
• Weight : Approx. 80kg
• Wide range temperature : -35°C ~ + 45°C

Application

• ONYANG 32R, Sin-bundang 72R, 48R, AUTS EMU(R&D) 6R

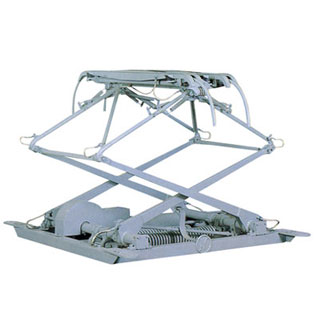

产品介绍

装于动力车辆顶上，利用于刚体架线(地下区)及悬链线（地上区)间空气上升、弹簧下降的方式来具有集电功能. 为具备耐寒和耐雪，在制动缸内labber和Link部位装于盖子，制动缸采用labber diapram方式

System Feature

• Speed : Max 110km/h
• A rated voltage : DC 1,500V , AC 25,000V
• Operating method : Raised by air pressure and lowered by spring force
• Operating air pressure : 4 ~ 7 bar
• Static contacting force : Standard 6kgf
• Material of the Current collector strip : Metallized Carbon , Sintered copper alloy
• Weight : Approx. 190kg
• Wide range temperature : -25°C ~ + 45°C

Application

• EMU for Domestic market (100%)

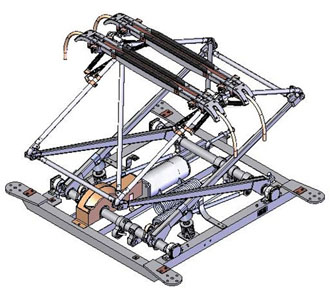

System Feature

• Model : YT88 & YT90
• Speed : Max. 110kph
• Operation : Raised by air, Lowered by spring force
• Weight : Approx. 180kg
• Project : EMU for Domestic market (100%)

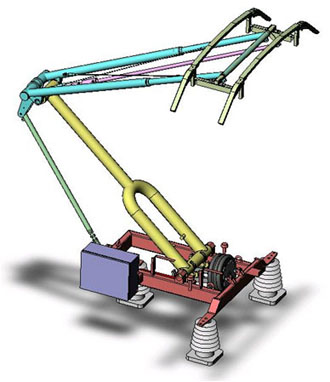

System Feature

• Model : EL-YP200G(WBL85)
• Speed : Max. 200kph
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 120kg
• Project : Korail E-Loco 83R.

System Feature

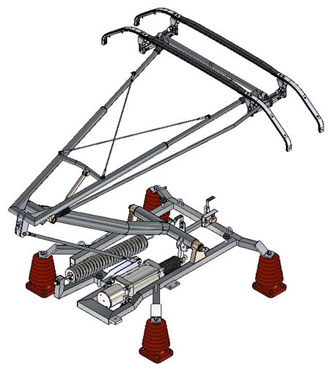

• Model : EC-YP140G(SBE920)
• Speed : Max. 140kph
• Operation : Raised by air, Lowered by spring force
• Weight : Approx. 180kg
• Project : Turkey TCDD 96R.

System Feature

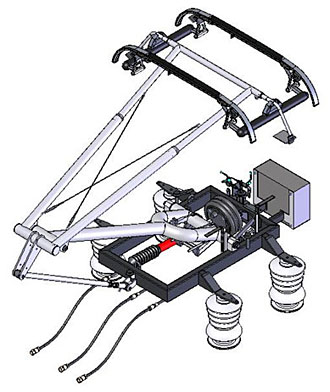

• Model :EL-YP300S
• Speed : Max. 300kph
• Operation : Raised by air, Lowered by its own weight
• Function : ADD, Up-lift stop device.
• Weight : Approx. 140kg
• Project : Alternative for KTX. (10 set delivered)

System Feature

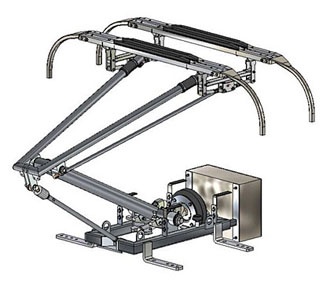

• Model : EC-YP165G(SBL923)
• Speed : Max. 165kph
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 80kg
• Project : Onyang 32R, Sin-bundang 72R, 48R, AUTS EMU(R&D) 6R.

System Feature

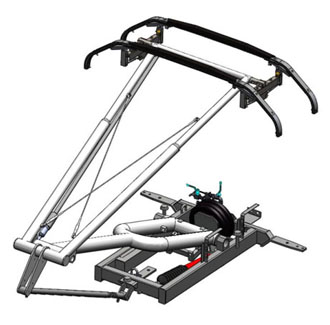

• Model : EL-YP200S(WBL85)
• Speed : Max. 200kph
• Function : ADD, OHP.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 120kg
• Project : Tilting EMU 6R, Kyungchun EMU 64R, Fright E-Loco 54R, 31R, Intercity 138R.
• Perfomance : EN50206-1, EN50367

System Feature

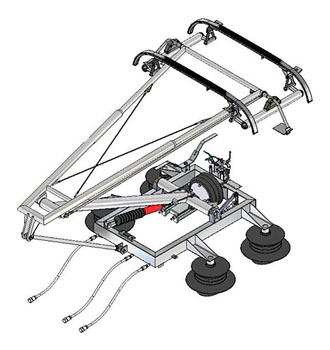

• Model : SSS400+
• Speed : Max. 350kph
• Function : ADD, Up-lift stop device.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 140kg
• Project : TBD
• Perfomance : EN50206-1, EN50367

System Feature

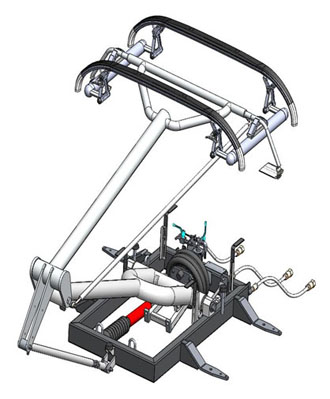

• Model : EL-YP400G
• Speed : Max. 400kph
• Function : ADD, Up-lift stop device, Semi active control.
• Operation : Raised by air, Lowered by its own weight
• Weight : Approx. 145kg
• Project : HEMU-430x.
• Perfomance : EN50206-1, EN50367

System Feature

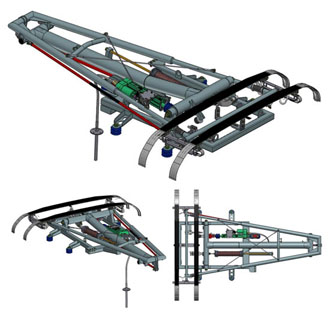

• Model : SBE 920
• Speed : Max. 70kph
• Function : Safety locking & Manual operation.
• Operation : DC 24V Motor drive
• Weight : Approx. 150kg
• Project : Tram.

System Feature

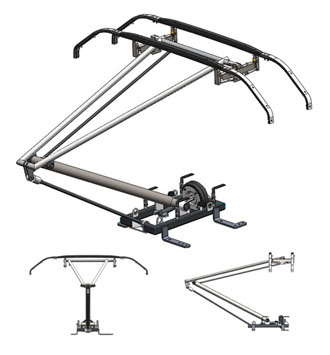

• Model : EC-YP140G
• Speed : Max. 70kph
• Operation : DC 24V Motor drive
• Function : Safety locking & Manual operation.
• Max operation height : Min 2,930 mm
• Weight : Approx. 150kg
• Project : Tram.
