Brake Control

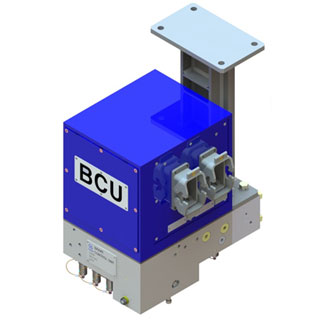

YB10

YB10
产品介绍
  • 制动控制单元的YB10系列
  • AC 控制方式
  • BC 控制方式
  • 架控方式
System Feature
  • Compact, Lightweight and Single Manifold Control
  • Service & Emergency Brake Control
  • Mechanically Load Controlled Emergency Brake
  • Wheel Slide Protection(WSP) Control per Axle
  • Fault Detection and Self Diagnosis System
  • Long Design Life and Lower Life Cycle Cost
  • Easy to maintenance
  • High stability and reliability based on the SIL certification
  • Operating Environment
    - Wide range temperature -40°C ~ +60°C
    - Vibration level to EN 61373
    - Waterproof level to IP65 EN 60529
  • Option
    - Various Train Communications : PWM, MVB, CAN, RS485, USB, Ethernet
    - Electrically Load Controlled Emergency Brake
    - Remote Brake Release
Application
  • Incheon LRT Line #2 74Cars
  • Ui-Sinseol LRV 36Cars
  • Incheon IAT 6Cars
  • Gimpo LRV 46Cars
