产品简介

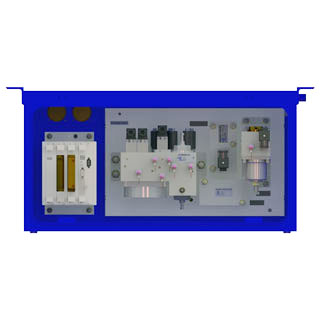

• BCU YB20系列
• AC 控制方式
• 转向架控制方式，车辆控制方式

System Feature

• Compact, Lightweight and Manifold Control
• Service & Emergency Brake Control
• Mechanically Load Controlled Emergency Brake
• Security Brake Control
• Remote Brake Release by Compulsory Magnet Valve
• Fault Detection and Self Diagnosis System
• Long Design Life and Lower Life Cycle Cost
• Easy to maintenance
• Operating Environment
  - Wide range temperature -40°C ~ +60°C
  - Vibration level to EN 61373
  - Waterproof level to IP65 EN 60529
• Option
  - Various Train Communications : PWM, MVB, CAN, RS485, USB, Ethernet
  - Electrically Load Controlled Emergency Brake
  - Wheel Slide Protection(WSP) Control per Axle/Bogie

Application

• Next Generation EMU 6Cars
• Intercity Train eXpress-Cheongchun 64Cars
• Daegu Line #2 Monorail 84Cars
• Intercity Train eXpress-Saemaeul 138Cars
• Busan Line #1 extension EMU 48Cars
• Korail Line #1 EMU 90Cars
