제품소개

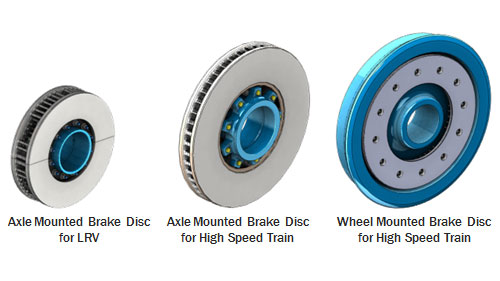

• 철도차량용 제동디스크

System Feature

• Modular design, available in different material and size
• Cast iron / Alloy cast iron / Alloy cast steel
• Various disc size 510, 640, 720, 1040 mm
• Computer simulation
  • - Thermal calculation of temperature and stress
  • - Finite element calculation of brake disc and pad

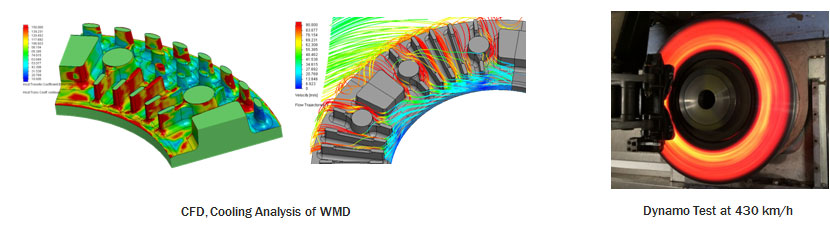

  • - Optimized cooling rib by CFD
• Dynamic testing
  • - Test of real service condition up to 500 km/h
  • - Test with real brake caliper for each project
• Wide temperature range -40 ~ +60 ℃
• Vibration performance verified acc.to IEC61373

Application

• EMU, LRV, High Speed Train
