产品简介

• Z-轴加速度信号的幅度和频率

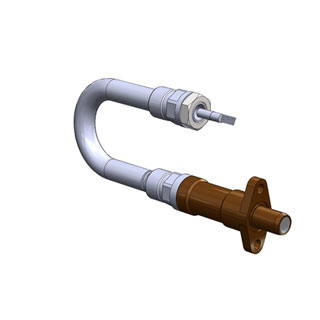

• 内装于Speed Sensor
• 绝缘电源设计（保护内部电子版）
• 低耗电设计

System Feature

• Speed sensor specification
  • - refer to speed sensor specification
• Acceleration sensor specification
  • - Measurement range : ±50G,±100G, ±200G
  • - Sleeper frequency bandwidth : 1~127Hz
  • - Sampling frequency : 1KHz
  • - Measurement channel Z axis
• Operating Environment
  • - Wide range temperature : -35 ~ 60°C
  • - EN 50155, IEC61373
• IP68

Application

• Derailment detect, train and railway monitoring and testing, structure and vibration stress monitoring
