减速箱

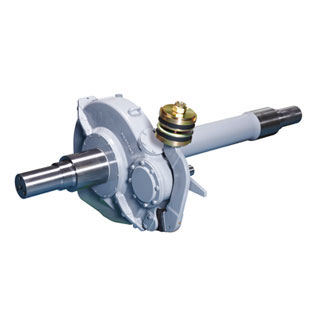

OSS(One Side Support) Type

OSS(One Side Support) Type
产品介绍
  • 减速器单元由Parellel cardan式构造组成,从与牵引电动器连接的Gear coupling收到动力,在1段减速器上进行减速而向车轮转达动力的装置
  • OSS(One Side Support) Type 不需要调整别的间隔,轴承磨耗限度高
  • 各旋转部位由非接触和非磨耗式的Labyrinth的构造,易于维修性和安全性
  • 以附着Breather的构造防止逆油,油温上升时圆满排出油蒸汽(只在Korail使用)
  • 外观构造简单&坚固
  • 润滑油更换时,排油及供油简单
System Feature
  • Max. Operating Speed : 100 ~ 110 km/h
  • Max. Design Speed : 110 ~ 120 km/h
  • Type of Gear : Helical Gear
  • Gear Ratio : 99/14 = 7.07
    (Wheel Gear: 99, Pinion Gear :14)
  • Gear Module : 6
  • Gear Pressure Angle : 26˚
  • Gear Helical Angle : 23˚
  • Weight : 370 kg (Without Axle)
Application
  • KORAIL, SMSC #2 Line, GWANGJU #1 Line INCHEON #1 Line , DAEGU #2 Line (Domestic)
  • ALMATA EMU, MANILA EMU(Oversea)
