Description

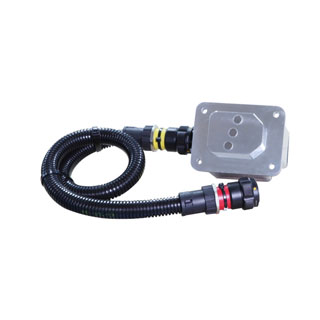

• Speed sensor based on magnetic measurement principle
• Typical fields of application are mainly drive controls, and brake and train control systems in rail vehicles.

System Feature

• Measuring range : 0Hz to 25Khz
• Signal : Voltage output
• Temperature range : -40 ~ 85°C
• Supply Voltage : DC 12~ 30V
• Number of channels : 1 ~ 6
• Air gap : 0.2 ~ 2.5mm depending on the module
• IP68
• Module 1.5 ~ 2.5
• EN 50155, IEC61373

Application

• Traction control , Anti-slip, Anti-skid, Motor speed, Speed monitoring
